瓦楞板系統
CORRUGATED PANEL SYSTEM

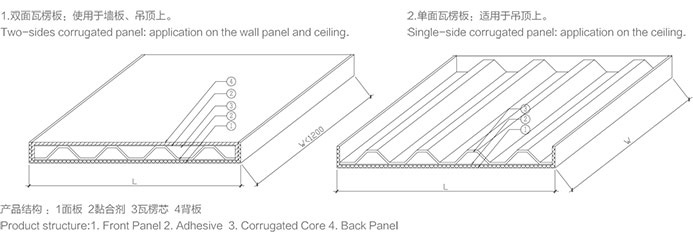

產品說明 PRODUCT DESCRIPTION
超面寬、高平整
板面最大尺寸可達1800×7800，由于中間有瓦楞芯粘合，板面亦有極高的平整度。
* Super wide & High Level
The panel’s max size can reach 1800x7800, the panel also has higher flatness because of corrugated core in the middle.
強度高、重量輕
板面可承受高強度的壓力、剪切力，不易變形。重量輕4.6~5.8㎏/㎡。
* High strength & Low Weight
The panel can bear high strength pressure and shearing force, not easily deform. The weight is 4.6-5.8kg/m2.
防火、隔音
隔熱、隔音:瓦楞芯的條形結構形成的單獨條形空間致使空氣之間不產生對流從而使板塊具有良好的隔熱、保溫、防潮性能；同時由于瓦楞板是復合體結構，具有良好的隔音功能，從而達到降低噪音的效果，同時鋁合金瓦楞板也是非常好的防火裝飾材料，板面耐火性可達B1級。
* Fire Resistance & Acoustic Insulation:
Heat Insulation and acoustic Insulation: The solo strip space formed by the strip structure of corrugated core to avoid convection of air both inside and outside, so the panel has good heat insulation, heat preservation and humidity resistance;
Meantime, because of the corrugated panel is a complex structure , so the panel has good acoustic performance and effect to reduce noise, at the same time aluminum corrugated panel is a very good material for fire resistance decoration and fire performance can reach class B1.
吸音
在面板上先穿好孔后粘貼SOUNDTEX吸音紙，再復合瓦楞就形成了吸音瓦楞板。
* Acoustic performance:
The perforated panels are with Soundtex fleece and then composited corrugated core to form acoustic corrugated panel.
易安裝、適用廣
板面可單獨安裝、互換。適用于機場，地鐵、展覽板等公共場所。
* Simple accessibility and widely application
The panel can be installed and mutual changed.
Application areas: airport, metro and exhibition hall, etc.
個性化、多選擇
可根據設計師的個性化設計，有矩形、條形、弧形各種形狀，
有豐富的色彩可供選擇。
* Personality & multiple options
Can be designed personality, such as rectangle, linear and curve, etc.
More colors for your option.

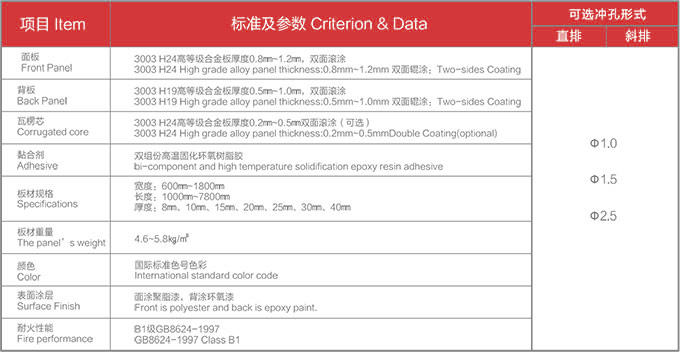

技術參數 PRODUCT DATA
安裝結構示意圖 INSTALLATION AND ASSEMBLY DETAIL

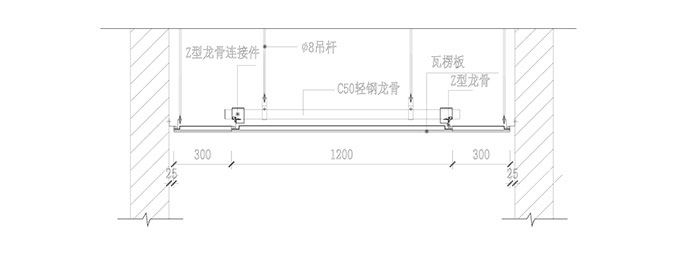

瓦楞板吊頂安裝示意圖 CORRUGATED PANEL INSTALLATION DETAIL
蜂窩板系統
HONEYCOMB PANEL
產品說明 PRODUCT DESCRIPTION

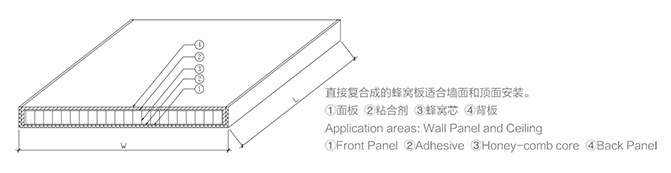

超面寬、高平整
板面最大尺寸可達1800×7800，由于中間有蜂窩芯粘合，板面亦有極高的平整度。內層為特制的六邊形鋁蜂窩，由硬度達到H19的鋁合金構成，作為粘附在夾層結構中的芯板，在切向上承受壓力。這些相互牽制的密集蜂窩猶如許多小工字梁，可分散承擔來自面板方向的壓力，使板受力均勻，保證了面板在較大面積時仍能保持很高的平整度。另外，空心蜂窩還能大大減弱板體的熱膨脹性。
* Super wide & High Level
The panel’s max size can reach 1800x7800mm, the panel also has higher flatness because of corrugated core adhesive in the middle.
Inside is customized hexagon aluminum honey-comb, it’s formed by H19 aluminum alloy. As adhesive in the middle, it bears the upper pressure.
These honeycombs by mutual effect are just like small I-beams that can bear the panel’s pressure to make sure the panel can keep high leveling in much more area.
In addition, the hollow honeycomb can reduce the thermal expansion of the panel body.
強度高、重量輕
板面可承受高強度的壓力、剪切力，不易變形。重量輕4.6~5.8㎏/㎡。
* High strength & Low Weight
The panel can bear high strength pressure and shearing force, not easily deform. The weight is 4.6-5.8kg/m2.
防火、隔音
隔熱、隔音:鋁合金蜂窩板的蜂窩結構形成的單元室致使空氣之間不產生對流從而使板塊具有良好的隔熱、保溫、防潮性能；同時由于板是復合體結構，具有良好的隔音功能，從而達到良好的降低噪音的效果，同時鋁合金蜂窩板也是非常好的防火裝飾材料，板面耐火性可達B1級。
* Fire Resistance & Acoustic Insulation:
Heat Insulation and acoustic Insulation: The solo strip space formed by the strip structure of corrugated core to avoid convection of air both inside and outside, so the panel has good heat insulation, heat preservation and humidity resistance;
Meantime, because of the corrugated panel is a complex structure , so the panel has good acoustic performance and effect to reduce noise, at the same time aluminum corrugated panel is very good material for fire resistance decoration and fire performance can reach class B1.
吸音
在面板上先穿好孔后粘貼SOUNDTEX吸音紙，再復合蜂窩芯就形成了吸音蜂窩板。
* Acoustic performance:
The perforated panels are with Soundtex fleece and then composited corrugated core to form acoustic corrugated panel.
易安裝、適用廣
板面可單獨安裝、互換。適用于機場，地鐵、車站等公共場所。
* Simple accessibility and widely application
The panel can be installed individually and mutually exchanged .
Application areas: airport, metro and exhibition hall, etc.
個性化、多選擇
可根據設計師的個性化設計，有矩形、條形各式形狀，有豐富的色彩以供選擇。
* Personality & multiple options
Can be designed personality, such as rectangle, linear and curve, etc.
More colors for your option.

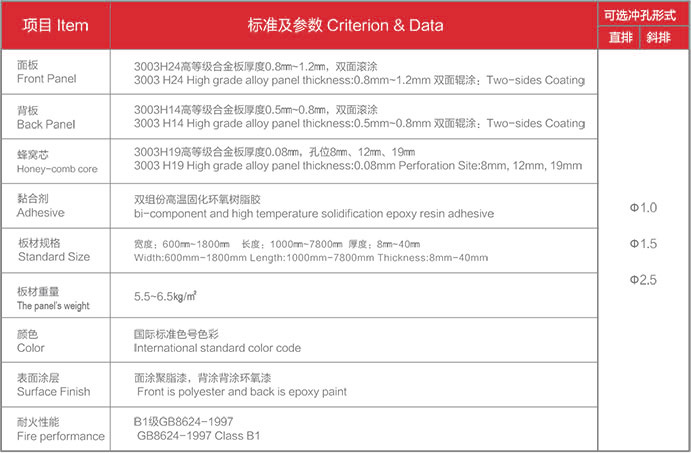

技術參數 PRODUCT DATA

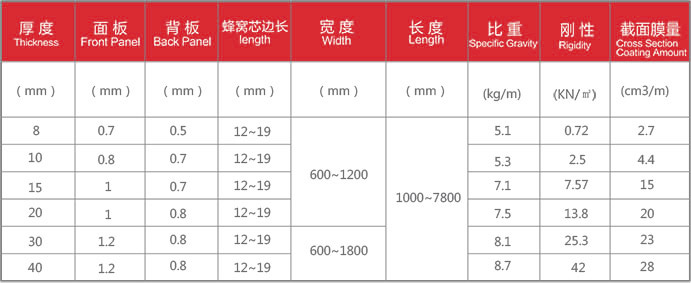

蜂窩鋁板規格型號及力學性能 Aluminum Honeycomb Panel Specification & Mechanics Performance
肌理板系統
TEXTURE PANEL SYSTEM
產品釋義 PRODUCT DESCRIPTION
肌理金屬天花板，是將波浪型的機理鋁合金材料，
經過特殊的工藝復合在鋁合金基板上的一種新型的復合裝飾板。
Product Description
Texture metal ceiling is a new type composited decoration panel that use wave texture aluminum
material to attach on the aluminum base plate after special process.
產品特點 PRODUCT CHARACTERISTIC
因肌理材料本身凹凸的特點，其經過復合后有如下特點：
Product Characteristic
Because of the characteristics of the concave-convex texture of material itself, details as below:
① 極高的裝飾性：
凹凸的肌理紋路，極其現代的裝飾線條型，不論是在天花板，還是墻面板，都是極具裝飾性。
High Decoration:
The concave-convex texture grain and contemporary appearance, good decoration whether in the ceiling or wall panel.
② 吸音降噪：
肌理板經沖孔在復合有較好的吸音降噪功能。
Acoustics absorption & Noise Reduce:
Good acoustical and noise reduce performance on the condition of the perforated texture panel to be composited.
③ 保溫：
雙重板的復合，有較好的保溫效果。
Heat Preservation
Two-sides panel composited shall have good effect of heat preservation.

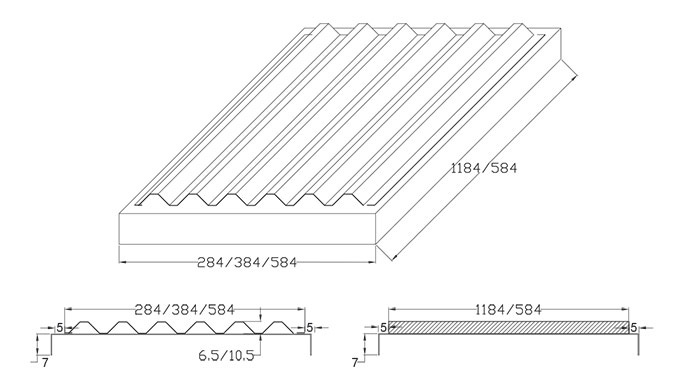

肌理板-模型 TEXTURE PANEL MODEL

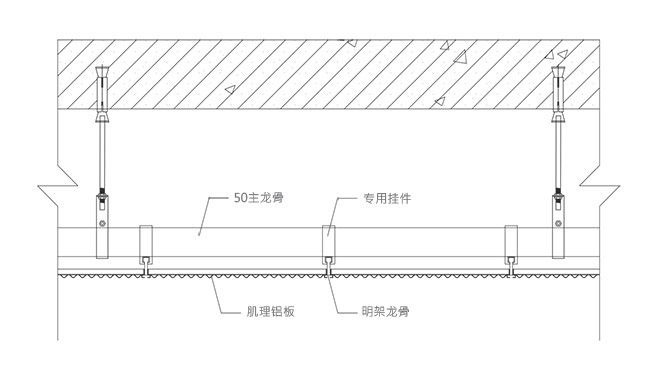

肌理板-節點 TEXTURE PANEL DETAIL
